535-T 3 SPEED 220V MACH W/BSPT Original price was: 12,044.96$.10,539.34$Current price is: 10,539.34$.

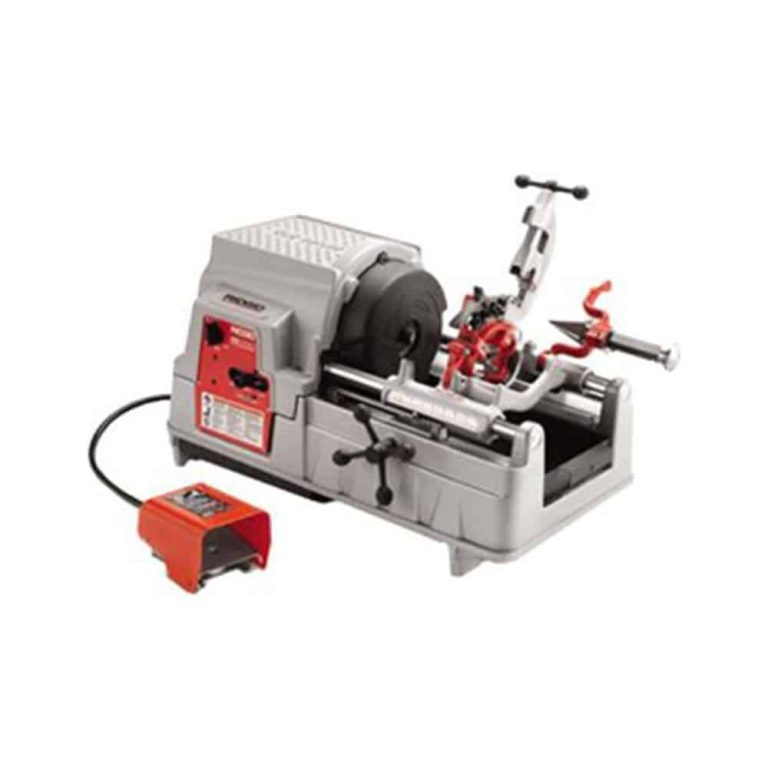

535-T 3 SPEED 220V MACH W/BSPT
Original price was: 12,044.96$.10,539.34$Current price is: 10,539.34$.
Add the desired quantity to the selected products.
The model 535A retains its role as the mainstay of industry efficiency while adding features that make threading work more efficient. For long, uninterrupted work, the 535A is the tool of choice thanks to its large chip tray and oil reservoir. Designed to offer maximum uptime.
Features
- The oscillating-action chuck quickly grips and stabilizes the workpiece
- Large 6.6 l (1.75 gallon) oil reservoir.
- Large chip tray.
- Large surface to keep tools and materials within reach
- Simpler threading thanks to the high-clearance carriage
- Usable with the 141 and 161 geared threaders
- Uses model 816/817 semi-automatic, model 815A self-opening or model 811A quick-opening threading heads.
- Length rule for optimal cutting.
Accessoires
- Heads and dies.
- Supports for extrusion heads.
- Three support models available.
- Threading cutting oil.
- Nipple chuck.
Specifications
- Pipe capacity 1/8"-2" (3 mm-50 mm), 2 1/2"-4" (62 mm-100 mm) with 141 threader.
- Bolt capacity 1/4"-2" (8 mm-50 mm).
- Switches Forward/off/reverse and integrated safety foot switch.
- Chuck Automatic with four reversible forged jaws.
- Rear centring device Automatic, centring only.
- Cutters Self-centring, fully floating. Two models available:
- Model 820: wheel cutter, cutting capacity 6 to 50 mm for pipe and 8 to 25 mm for bolts.
- Model 821: blade cutter, pipe capacity 1/2-2'' (15-50 mm).
- 5-flute cone reamer, RH, 1/8"-2" (3 mm-50 mm).
- Oil pump Self-priming gerotor oil pump.
- Combination RH/LH reamer available.
