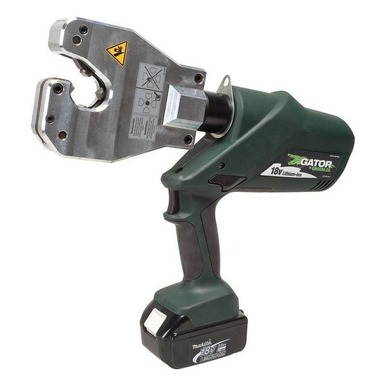

Crimp Tool, Insul Dieless at 120V AC ADPT

6,273.86$

Add the desired quantity to the selected products.

  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350°
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • Utilizes four indentors to make the crimp
  • Flip-top style uses a pull pin to open head for easy removal from the connector
  • U.S. Patents #6,206,663 and #6,065,326
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger

Specifications

Accessory Chargeur 52178 UPC 52178 120 V
Batterie Lithium-ion 18 V 3,0 Ah
Battery charging time 1 h
Crimping capacity Color-coded crimping lugs and splices for copper 6 AWG — 500 KCMIL, lugs and splices for aluminum 6 AWG — 400 KCMIL
Crimping force 55 kn (12 400 lb)
Overall length 355 mm (14 in)
Replacement part 52176 UPC 52176 Li-ion battery 18 V 3,0 Ah, 10118 UPC 10118 carrying case, 12274 UPC 12274 carrying strap, 52178 UPC 52178 charger 120 V, 52179 UPC 52179 charger 12 V, 52180 UPC 52180 charger 230 V
Standard C/US UL Listed
Sub-brand Gator
Type Four-point dieless, battery powered
Weight 5,4 kg (12 lb)
* Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models.
