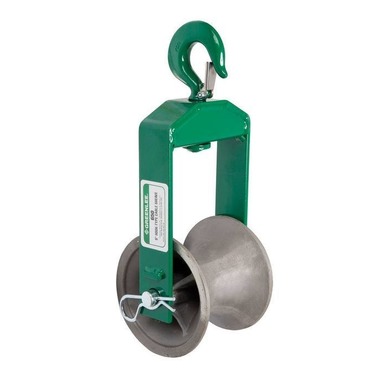

12″ (304.8 mm) Hook Type Cable Sheave435.23$
12″ (304.8 mm) Hook Type Cable Sheave
435.23$
Add the desired quantity to the selected products.
- Sturdy welded steel frames
- Forged steel closing hooks with 25.4 mm (1 in.) openings
- 127 mm (5 in.) wide aluminum alloy sheaves with self-lubricating bearings
- Select a sheave whose maximum rated capacity is greater than or equal to the cable puller's maximum pulling force
- Model number: 783310153252
Features
| Keyway | Aucune |
| Outside diameter | 269,7 mm (10,62 po) |
| Spread diameter | Between 168.1 mm (6.62 in.) and 269.7 mm (10.62 in.) |
| Gorge | R 50,8 mm (2 po) |
| Material | 304.8 mm (12 in.) diameter hook sheave with a minimum radius of 84.1 mm (3-5/16 in.) |
| Comprend | Sheave pin 16797 UPC 16797, sheave pin clamp 50302 UPC 50302 (2), sheave 15358 UPC 15358, sheave bushing 16798 UPC 16798 (2), clevis frame 16800 UPC 16800 |
| Standard | 304.8 mm (12 in.) HOOK TYPE CABLE SHEAVE |
| Type | Poulie |
| Application | Electrical cable pulling |
| Capacity | 17,800 kN (4 000 lb) |
| * Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models. |
