POULIE SUR ÉTRIER, QUICK ADJUST (EMBALLÉ) 4
POULIE SUR ÉTRIER, QUICK ADJUST (EMBALLÉ) 3
POULIE SUR ÉTRIER, QUICK ADJUST (EMBALLÉ) 2

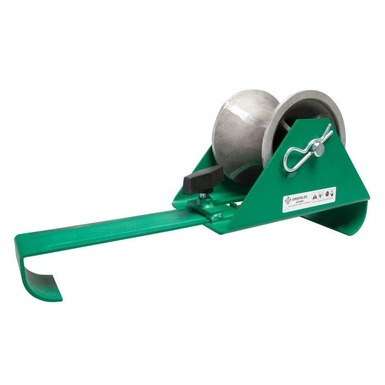

Quick Adjust Sheave on Yoke (Packaged)

329.09$

Add the desired quantity to the selected products.

  • Mounting and disconnection 7 times faster
  • Attaches to all spaced tray rung sizes
  • No loose parts
  • Adjustable sliding leg that can extend to fit spaced tray rungs up to 508 mm (20 in.)
  • Set-screw handle to easily lock and unlock the adjustable sliding leg
  • Hook feet to grip the yoke more securely
  • The steel frame attaches easily to cable supports up to 50.8 mm (2 in.) thick
  • Cast aluminum sheave with a rugged pin and bronze bushings
  • Easily handle forces up to 45.4 kg (100 lb)
  • Designed and manufactured in the U.S.A.
  • Model number: 783310027683

Features

Application Allows cables to be pulled along cable supports that are not basket-shaped. Designed to help lift loads on straight runs over the yoke.
Cable dimension Cable diameter: 114 mm (4.5 in.)
Capacity 45 kg (100 lb)
Hauteur 228,6 mm (9 po)
Longueur Retracted: 292.1 mm (11 1/2 in.) Extended: 539.75 mm (21 1/4 in.)
Hauteur hors tout 228,6 mm (9 po)
Longueur hors tout Retracted: 292.1 mm (11 1/2 in.) Extended: 539.75 mm (21 1/4 in.)
Pulling capacity 45 kg (100 lb)
Roller opening size 114 mm (4,5 po)
Poids 5,2 kg (11,5 lb)
Largeur 177,8 mm (7 po)
* Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models.
