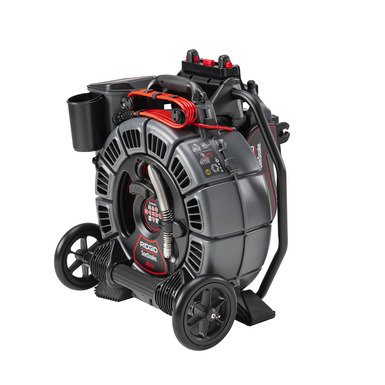

REEL, RM200B PAL W/D2B DRUM

Features

Interchangeability

• Includes the D2A and D2B drums
• Supplied with the drum of your choice
• Both drums can be purchased separately
• Easily interchangeable for versatile work.

Push capacity

• Each drum has different characteristics
• Choose the drum best suited to the type of job to be done

Portability

• Wheels and carrying handle to ensure easy movement.
• Hang the digital monitor to reduce storage space and make transport easier.

Specification

RM200A

• Pipe capacity (when used with a 5" (12.5 cm) pipe guide). 1.5" to 8" (3.8 cm to 20.3 cm)
• Push cable length 61 m (200')
• Diameter 0.3" (0.76 cm)
• Fibreglass core diameter 0.14" (0.36 cm)
• Minimum bend radius 7.1 cm (2.8")
• System weight 36.3 lbs. (16.5 kg)
• Drum weight 7.4 kg. (7.4 kg)
• Drum diameter 43.2 cm (17")
• Camera view Automatic self-levelling
• Longueur 1″ (2,6 cm)
• Diameter 1" (2.5 cm)
• Light 6 LEDs
• Sonde frequency 512 Hz
• Resolution NTSC 656 x 492 pixels; PAL 768 x 576 pixels
• Spring assembly type Single. Length, 12" (30.8 cm)

RM200B

• Pipe capacity (when used with a 5" (12.5 cm) pipe guide). 2" to 8" (5.1 cm to 20.3 cm)
• Push cable length 50 m (165')
• Diameter 0.35" (0.90 cm)
• Fibreglass core diameter 0.18" (0.45 cm)
• Minimum bend radius 8.9 cm (3.5")
• System weight 39.2 lbs. (17.8 kg)
• Drum weight 8.7 kg (19.2 lbs.) (8.7 kg)
• Drum diameter 43.2 cm (17")
• Camera view Automatic self-levelling
• Longueur 1″ (2,6 cm)
• Diameter 1" (2.5 cm)
• Light 6 LEDs
• Sonde frequency 512 Hz
• Resolution NTSC 656 x 492 pixels; PAL 768 x 576 pixels
• Spring assembly type Double nested. Length, 43.3 cm (17")
