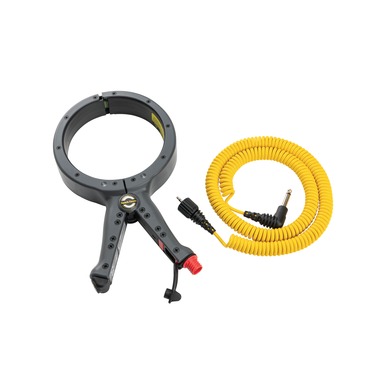

SeekTech Induction Signal Clamp (72963)

916.52$

The RIDGID SeekTech Induction Signal Clamp Accessory allows users to apply a signal to a cable or pipe 119 mm (4.7 in) or less in diameter when it is not possible to connect the transmitter wires directly to the target conductor. When its jaws are closed around the cable or pipe, the clamp couples the transmitted signal to the conductor by induction. Once the signal is applied to a conductor, it can be traced using a compatible receiver, such as SeekTech SR-20, SR-24, or SR-60.

Characteristics

  • Applies a signal to a cable or pipe less than 119 mm (4.7 in) in diameter
  • Compatible with all SeekTech RIDGID line transmitters, including ST-305, ST-305R, ST-33Q+, and ST-510
  • Also compatible with any comparable line transmitter with a maximum output power of 10 watts or less if the frequency is less than 45 kHz and a maximum of 1 watt if the frequency is greater than 45 kHz
  • Can be used with frequencies between 8 kHz and 262 kHz
  • Detachable and compact spiral cord
  • Ergonomic handle for easy opening and closing
  • Convenient tab for opening and closing in tight spaces

Characteristics

Weight 0.5 kg (1.1 lb)
Height 264 mm (10.4 in.)
Width 148 mm (5.8 in.)
Depth 36.8 mm (1.5 in.)
Inner Diameter 119 mm (4.7 in.)
Cord Length 0.75 m (2.5 ft)
Power Source Line transmitter with a maximum output power of 10 W with a frequency < of 45 kHz, or 1 watt max. for a frequency > of 45 kHz
Frequencies 8 kHz to 262 kHz
