THREADING MACH,535A 230V 36RPM Original price was: 11,237.91$.9,833.17$Current price is: 9,833.17$.

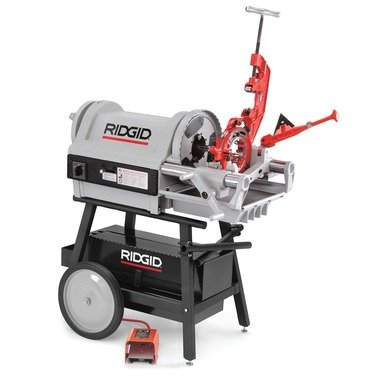

THREADING MACH,535A 230V 36RPM
Original price was: 11,237.91$.9,833.17$Current price is: 9,833.17$.
Add the desired quantity to the selected products.
The model 535A retains its role as the mainstay of industry efficiency while adding features that make threading work more efficient. For long, uninterrupted work, the 535A is the tool of choice thanks to its large chip tray and oil reservoir. Large raised surface to keep other tools and materials accessible. Designed to offer maximum uptime.
Features
- Automated chuck.
- Large 6.6 l (1.75 gallon) oil reservoir.
- Large chip tray.
- Large surface to keep tools and materials within reach
- Usable with the 141 geared threader
- Uses model 816/817 semi-automatic, model 815A self-opening or model 811A quick-opening threading heads.
- Length rule for optimal cutting.
Steel cabinet features
- 17-gauge welded steel assembly
- Two internal shelves and 1 external
- Two-leaf door with steel latch
- Storage for the foot-control power cords
- Easy cleaning thanks to the plugs.
Specifications
- Pipe capacity 1/8"-2" (3 mm-50 mm), 2 1/2"-4" (62 mm-100 mm) with 141 threader.
- Bolt capacity 1/4"-2" (8 mm-50 mm).
- Switches Forward/off/reverse and integrated safety foot switch.
- Chuck Automatic with four reversible forged jaws.
- Rear centring device Automatic, centring only.
- Cutters Self-centring, fully floating. Two models available:
- Model 820: wheel cutter, cutting capacity 6 to 50 mm for pipe and 8 to 25 mm for bolts.
- Model 821: blade cutter, pipe capacity 1/2-2'' (15-50 mm).
- 5-flute cone reamer, RH, 1/8"-2" (3 mm-50 mm).
- Oil pump Self-priming gerotor oil pump.
- Combination RH/LH reamer available.
