6,000 lb Cable Puller, 220V14,250.65$

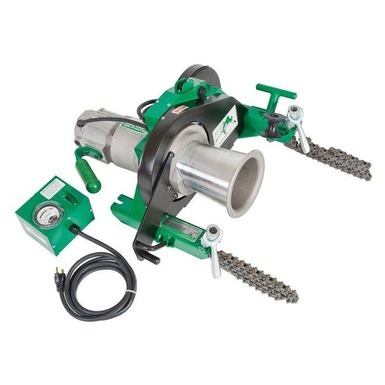

6,000 lb Cable Puller, 220V
14,250.65$
Add the desired quantity to the selected products.
- Pulling capacity up to 6,500 lb (28.9 kN) with an operator effort of under 27 lb (120 N)
- Unique floor-mount attachment for quick, reliable installations
- Close-link attachment chains that do not twist under tension
- Hardened steel serrated gripping legs for a solid attachment to the conduit
- Pulling dynamometer included for continuous pull monitoring
- Right-angle sheave that allows the operator to stay clear of the pulling axis
- Powerful audible warning and maximum-force shut-off breaker for improved safety
- Tapered capstan and patented cable guide system for better rope control as the rope passes through the capstan
Features
| Sub-brand name | Super Tugger |
| Charge | 6,500,000 LB (28,900 KN) maximum, 4,500,000 LB (20,000 KN) continuous |
| Cable type | Electrical cable |
| Tension nominale | 250 V |
| Fixation | Chain mount |
| Main pull rope specification | 3/4 IN. (19.100 MM) composite double braid, rated capacity 26,000 LB (115.600 KN) |
| Inclut | Pulling dynamometer and chain vises |
| Type | Cable puller |
| Accessoire | Corde composite double tresse 35098 UPC 35098 3/4 PO x 300 PI (19,100 MM x 91,000 M), Corde composite double tresse 35100 UPC 35100 3/4 PO x 600 PI (19,100 MM x 182,000 M), Corde composite double tresse 35101 UPC 35101 3/4 PO x 1 200 PI (19,100 MM x 365,0 M) |
| Application | Electrical cable pulling |
| Capacity | 16.5 FT/MIN no load, (8.800 KN) – 11 (3.4) at 2,000 LB, (17.900 KN) – 7.5 (2.3) at 4,000 LB, (26.700 KN) – 6 (1.8) at 6,000 LB |
| Drive motor | 1-1/2 hp, 220 V c.a. 50 Hz |
| Pulling force | 6,500,000 LB (28,900 KN) maximum, 4,500,000 LB (20,000 KN) continuous |
| Pull rope | 3/4 IN. (19.100 MM) composite double braid, rated capacity 26,000 LB (115.600 KN) |
| Pulling speeds | 16.5 FT/MIN no load, (8.800 KN) – 11 (3.4) at 2,000 LB, (17.900 KN) – 7.5 (2.3) at 4,000 LB, (26.700 KN) – 6 (1.8) at 6,000 LB |
| Rated current | 10 A |
| * Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models. |
