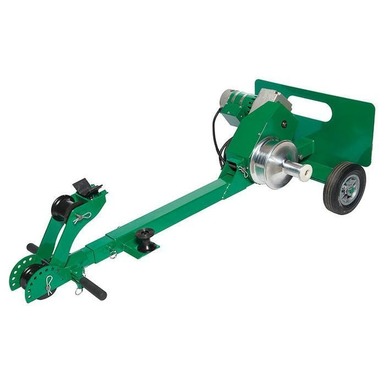

G3 TUGGER™ Cable Puller6,507.66$
G3 TUGGER™ Cable Puller
6,507.66$
Add the desired quantity to the selected products.
- Cable pulling 20 % faster
- High-speed pulling for weights up to 454 kg (1,000 lb)
- Continuous pulling load 25 % stronger
- Durable motor designed for a better pulling load
- Installation 3 fois plus rapide
- No loose parts
- Haute vitesse : 30 m/min (97 pi/min), basse vitesse : 12 m/min (41 pi/min)
Features
| Sub-brand name | Tugger |
| Charge | Continuous rated load 544 kg (1,200 lb) Intermittent rated load 907 kg (2,000 lb) |
| Cable type | Electrical cable |
| Tension nominale | 120 V |
| Vitesse | Pull rope: 13 mm (1/2 in.) polyester (minimum breaking strength 4,536 kg (10,000 lb)), 00444 – Foot pedal |
| Montage | Boom |
| Main pull rope specification | 12.7 mm (1/2 in.) composite double braid rope with an average rated breaking strength of 4,536 kg (10,000 lb) |
| Type | Cable puller |
| Application | 4/0 to 1,000 KCMIL pulling cable |
| Capacity | Speed (high) no load at 97 ft/min (30 m/min) 227 kg (500 lb) at 59 ft/min (18 m/min) 454 kg (1,000 lb) at 36 ft/min (11 m/min) Speed (low) no load at 41 ft/min (12 m/min) 454 kg (1,000 lb) at 21 ft/min (6 m/min) 907 kg (2,000 lb) (intermittent – 5 min on, 20 min off) at 13 ft/min (4 m/min) |
| Rated current | 12 A |
| * Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models. |
